EPB Motor & Electric Parking Brake Actuator for Brake Calipers
An EPB motor (Electric Parking Brake Actuator) operates the parking brake on an electronic caliper. How to identify the right EPB motor and what to send for a quotation.
An EPB motor, also known as an Electric Parking Brake Actuator, is the electric actuator mounted on an electronic parking brake caliper. It operates the parking brake mechanism electronically instead of using a conventional mechanical handbrake cable.
Shibao Brake supplies EPB brake calipers, EPB motors and related brake caliper repair components for automotive aftermarket distributors and brake parts specialists.
What is an EPB Motor?

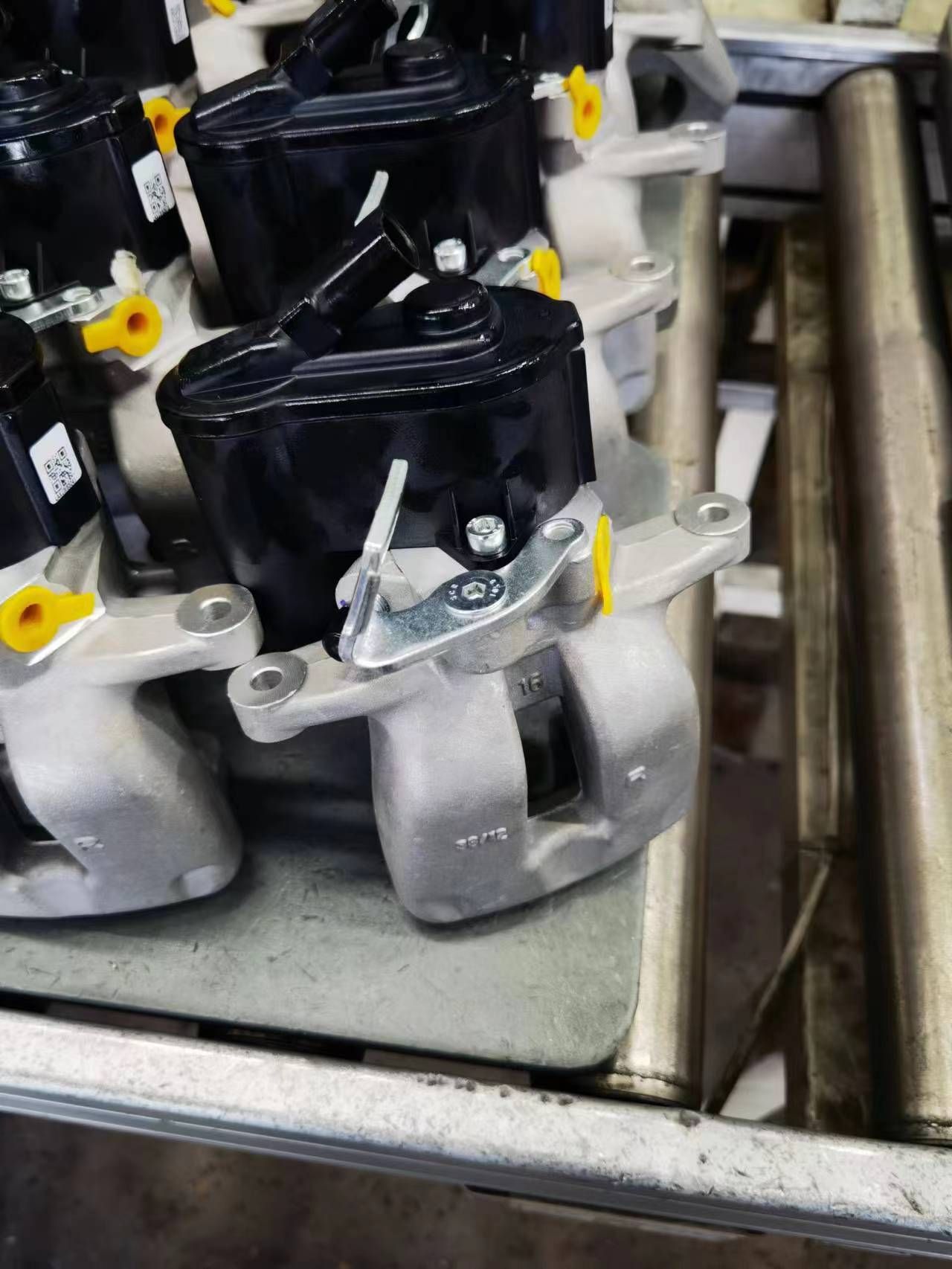

On an electronic parking brake system, the caliper carries a small electric motor and gear unit - the EPB actuator - that applies and releases the parking brake when the driver presses a button, or automatically when the vehicle controls request it. The motor drives a screw and gear mechanism inside the caliper, so no handbrake cable runs to the rear axle.
EPB calipers are used on pickups, SUVs and passenger cars. Because the actuator is an electro-mechanical part, it can wear or fail while the caliper body itself is still serviceable.
Can an EPB Motor Be Replaced Separately?
In many applications the EPB motor (actuator) is supplied separately from the caliper, so a failed motor can be replaced without replacing the complete caliper. It depends on the caliper design: most actuators are bolted on with two or three screws and a plug connection, while some caliper families are only serviced as a complete assembly.
Before ordering a separate motor, confirm the OE reference on the original actuator, the connector type and pin count, the mounting bolt pattern and screw spacing - and check that the caliper mechanism moves freely. If the piston, bore or slide is damaged, replacing the complete EPB caliper is normally the safer repair.
We supply both options - separate EPB motors and complete EPB calipers - so buyers can choose the repair level their market needs.
EPB Motor vs Complete EPB Brake Caliper
A separate EPB motor is the lower-cost repair: it addresses an electrical or actuator failure and keeps the original caliper and bracket. A complete EPB caliper replaces the whole unit - caliper body, bracket, actuator and hardware - and is the usual choice when the caliper is seized, leaking or corroded, or when the workshop prefers one part number for the job.
Both lines sell for distributors: motors for repair shops that want a fast, low-cost fix, and complete calipers for rebuilders and wholesalers who keep full assemblies in stock.
How to Identify the Correct EPB Motor
EPB actuators look similar across applications, so identification should be based on the part itself, not on the vehicle name alone:
- OE number printed on the original actuator or motor housing
- Connector shape and pin count (for example 2-pin or 3-pin plugs)
- Mounting points and screw spacing
- Motor housing shape, seal and cable routing
- Vehicle make, model, year and VIN or chassis code
Photos of the old actuator - top view, connector side and mounting side - are usually enough to confirm a match.
What Information Should Buyers Send?
- OE number (and any alternative number format)
- Vehicle application: make, model, year, VIN or chassis code
- Clear photos of the old part: actuator, connector and caliper
- Required quantity (per side, where left and right are involved)
- Destination market and packaging requirements
With these details we can confirm the correct EPB motor or caliper and quote availability.
Available EPB Motor Applications
Availability changes with production, and every EPB actuator is matched to the caliper it is fitted to. Send your reference list or photos and we will confirm which applications we can supply: EPB motors, EPB calipers and related brake caliper repair components for pickup, SUV and passenger car platforms.
FAQ
Q: What is the difference between an EPB motor and an EPB actuator?
A: In most catalogues they are the same part. Motor describes the electric unit itself; actuator describes what it does - moving the parking brake mechanism on the caliper.
Q: Can I replace only the EPB motor?
A: In many caliper designs yes, provided the caliper body and mechanism are in good condition. If the caliper is seized or leaking, replace the complete EPB caliper instead.
Q: Are your EPB motors genuine parts?
A: Our EPB motors and EPB calipers are aftermarket replacement parts, referenced to the original OE numbers for identification and compatibility matching.
Q: How do I check compatibility?
A: Send the OE number and photos of the old unit. The connector, mounting points and housing shape confirm the match before you order.
Send us your OE number, vehicle application, old part photo and required quantity for identification.
