Floating vs Fixed Brake Calipers: Which Design Does Your Vehicle Use?
Floating, sliding and fixed brake calipers differ in piston layout and cost. This guide explains the designs and lists popular pickup fitments for Ford, Isuzu, Nissan and Toyota.

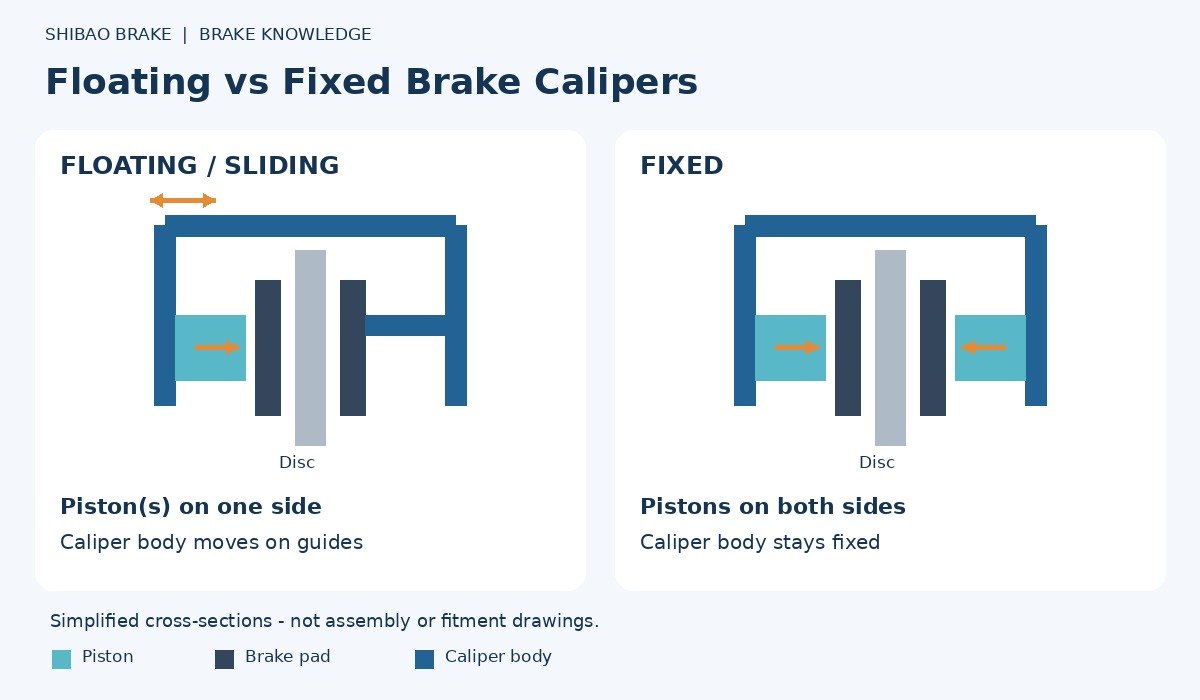

The brake caliper is the part of a disc brake system that holds and guides the brake pads and converts hydraulic pressure into mechanical force. Vehicles use one of three designs: the fixed caliper, the sliding caliper and the floating caliper. Knowing the difference matters when you order a replacement or a service kit.
Fixed Calipers
The fixed caliper does not move. Pistons are arranged on both sides of the brake disc, typically two or four per caliper, with up to four in high-performance or heavy vehicles. Fixed calipers are common on performance cars, racing and high-output applications.
Floating and Sliding Calipers
The floating caliper (also called sliding caliper) is the most widely used design in passenger cars and pickups. Its pistons press only the inner pad; the outer pad is clamped with the same force by the reaction of the caliper body moving on slide pins. One or two pistons are typical. Because it is simple, light and cheap to manufacture, the floating caliper is the aftermarket standard.
Where Slide Pins Fit In
Slide pins guide the floating caliper body as it moves relative to the rotor. These pins, their boots and the seal are the exact parts a caliper repair kit replaces. When pins or boots fail, the caliper drags and pads wear unevenly.
Fitment Examples from the Shibao Catalog
Shibao floating caliper assemblies cover: Ford Transit MK4 front (OEM 92VB2B121BA / 6 197 743), Isuzu TFR pickup 2WD and 4WD (8-09285970 / 8-94388-016-0), Nissan Sunny D21 (41001-09W00 / 41011-09W00), Toyota Hilux and VIGO (47730-OK020 / 47750-OK020), plus Ford Transit MK7 rear (6C11 2K328 AE).
FAQ: Which Kit Do I Need?
Q: How do I know if my caliper is floating? A: If the caliper body slides on pins over the rotor, it is floating or sliding type. Q: Can I fit a fixed caliper as a replacement? A: No - the caliper type must match the knuckle and brake system of the vehicle.
